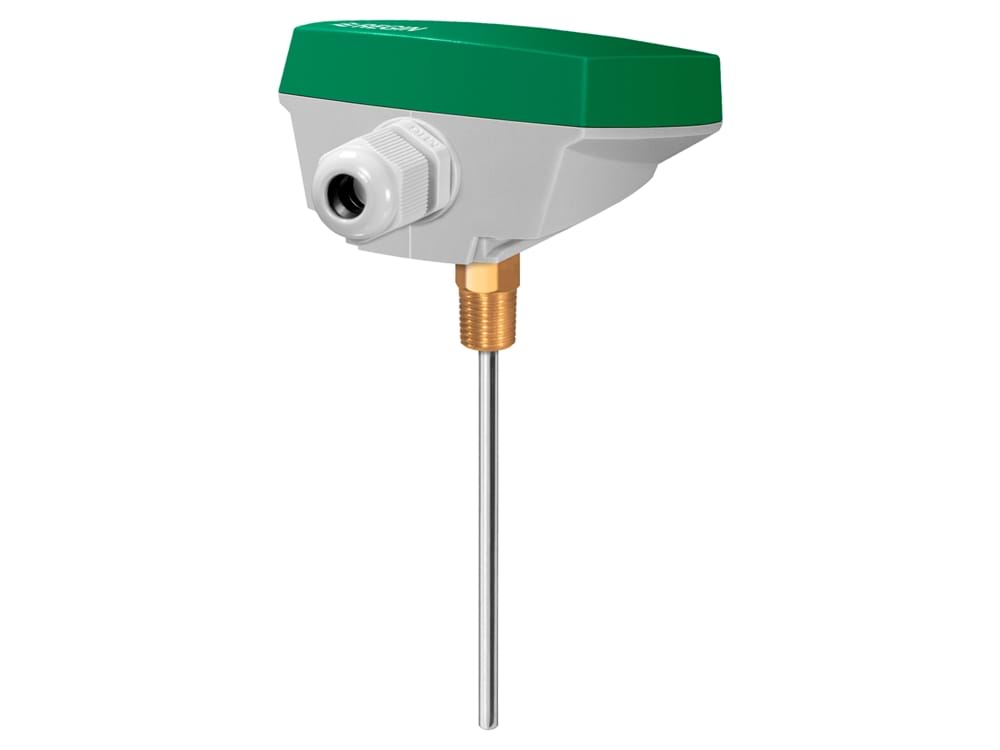

Immersion sensor for measuring the water temperature. Measuring element made of stainless steel, direct immersion (without removable protective sleeve).
Sensor element NTC10
time constant 4s
measuring range
Temperature -20…+120°C
diameter
Measuring element 5mm
Connection without
Protective sleeve R1/4\"
Nominal pressure level PN16
Immersion length 90 mm
Cable-
screw connection M16
Dimensions,
outside (WxHxD) 78 x 158 x 104mm
Degree of protection IP65
Material,
Housing polycarbonate (PC)
Material,
Sensing element stainless steel, SUS304
