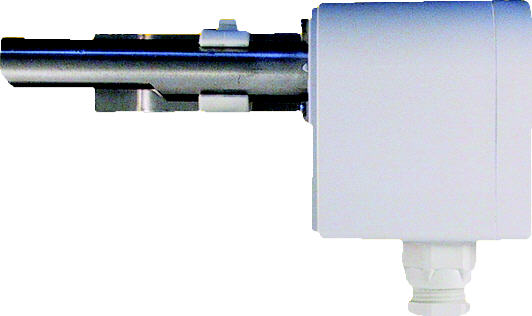

as an outdoor sensor
Measuring range Humidity: 0 ... 100% r.F.
Measuring range Temperature set to: please info in case of order!
Selectable via DIP switch -40 ... + 120 ° C, -30 ... + 70 ° C, 0 ... 100 ° C or 0 ... 50 ° C
Output: 2 x 4 ... 20 mA 2-wire technology
Supply voltage: 15 ... 30 Vdc, 24 Vac
Housing: plastic ABS gray, IP65
Stainless steel sensor tube, length 80 mm
Accessories: mounting flange, operating instructions
