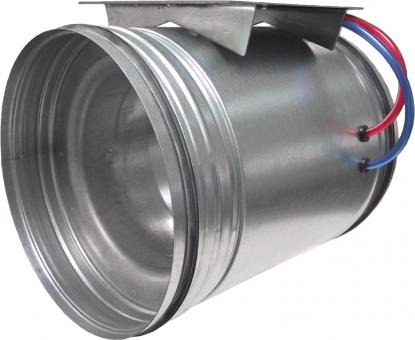

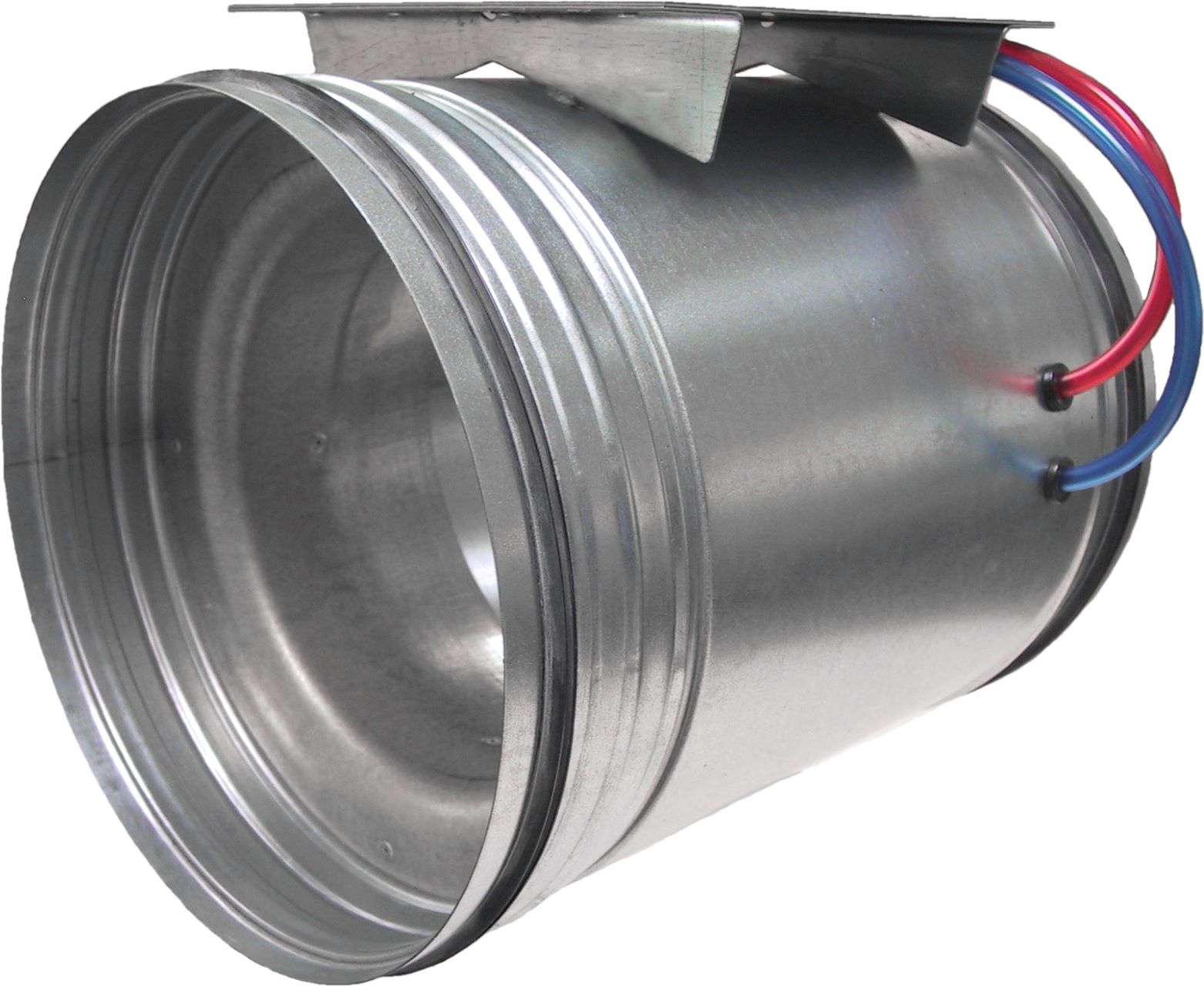

for flow measurement in ventilating systems.
Nominal diameter: DN 100
Material: sendzimir zinced steel, Socket connection on both sides,
without instrument holder!
Nozzles constant: 16
(x,xxx m³ / h / 16) ² = xxx,xx Pa
Please specify the flow direction of the medium in case that the measuring instrument should be fixedly mounted to the venturi tube.
position of the tube: horizontally / vertically
Flow direction: from left to right, from right to left, from top to bottom, from bottom to top
